CreatBot F160/F160-PEEK 3D Printer Single Extruder Large Build Size High Temp Hotend

• Features
• Specifications
• Price Guarantee

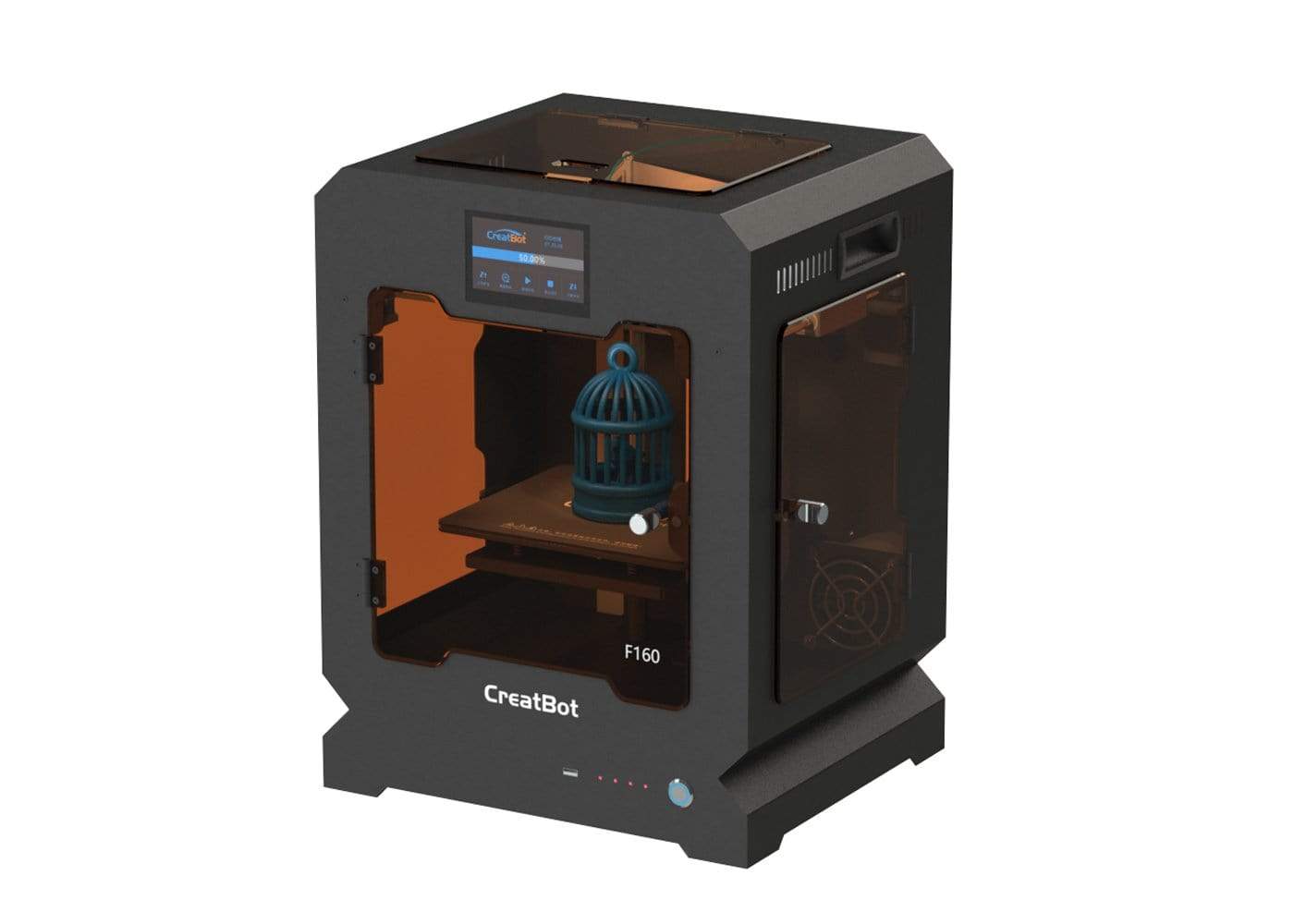

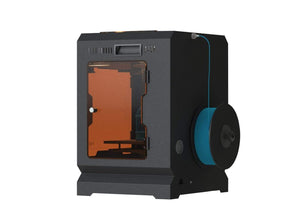

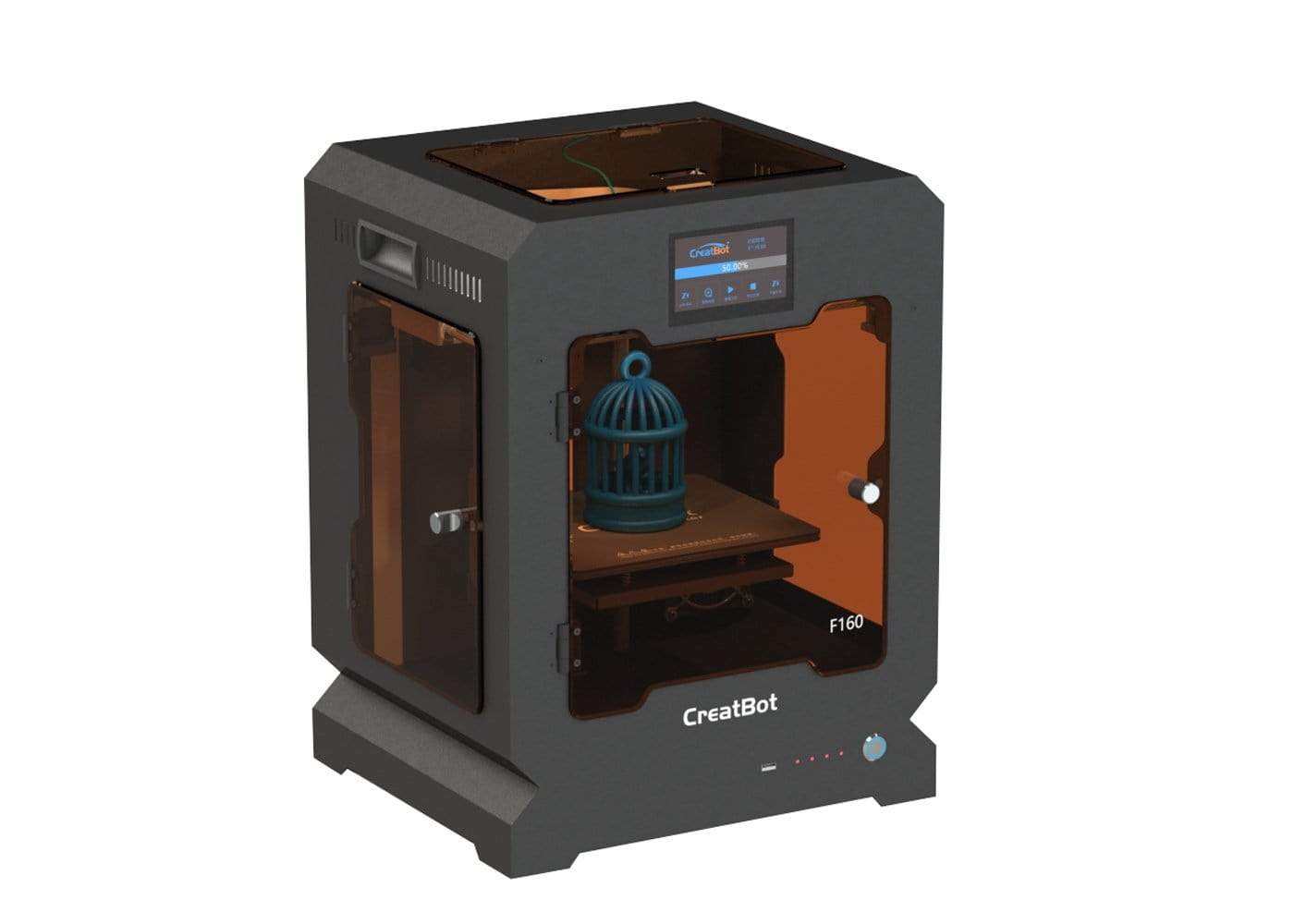

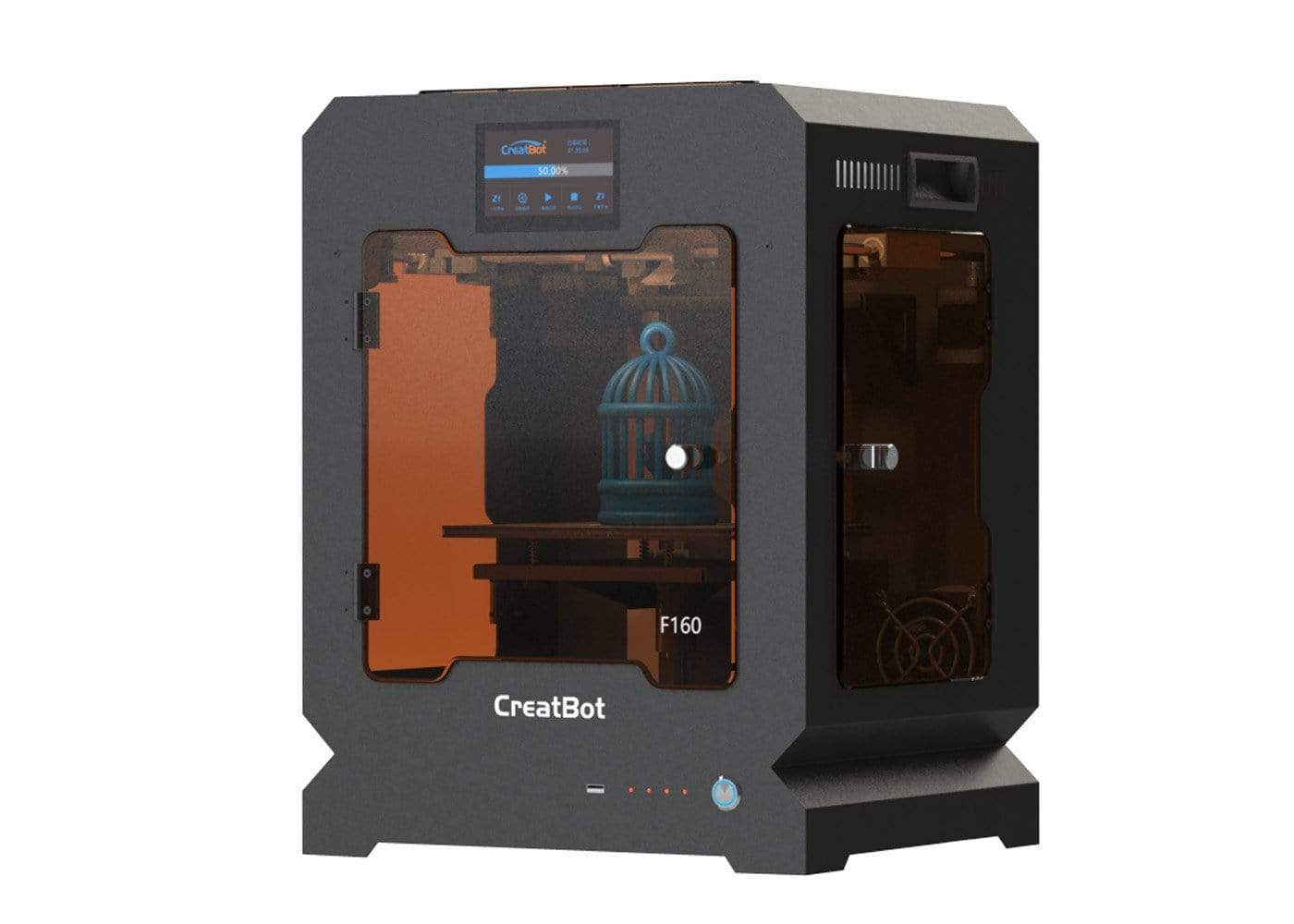

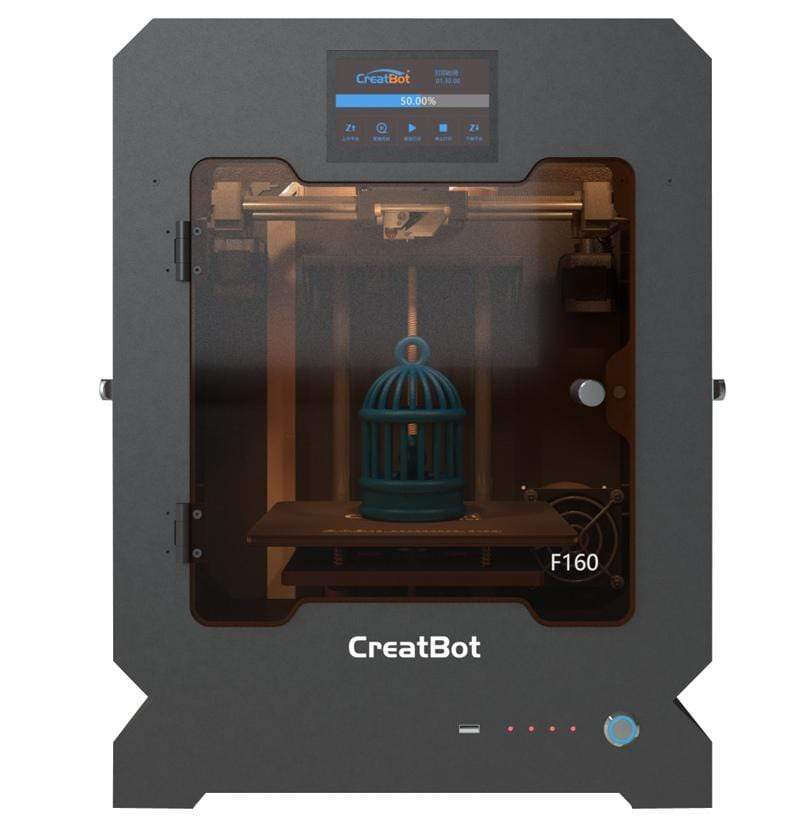

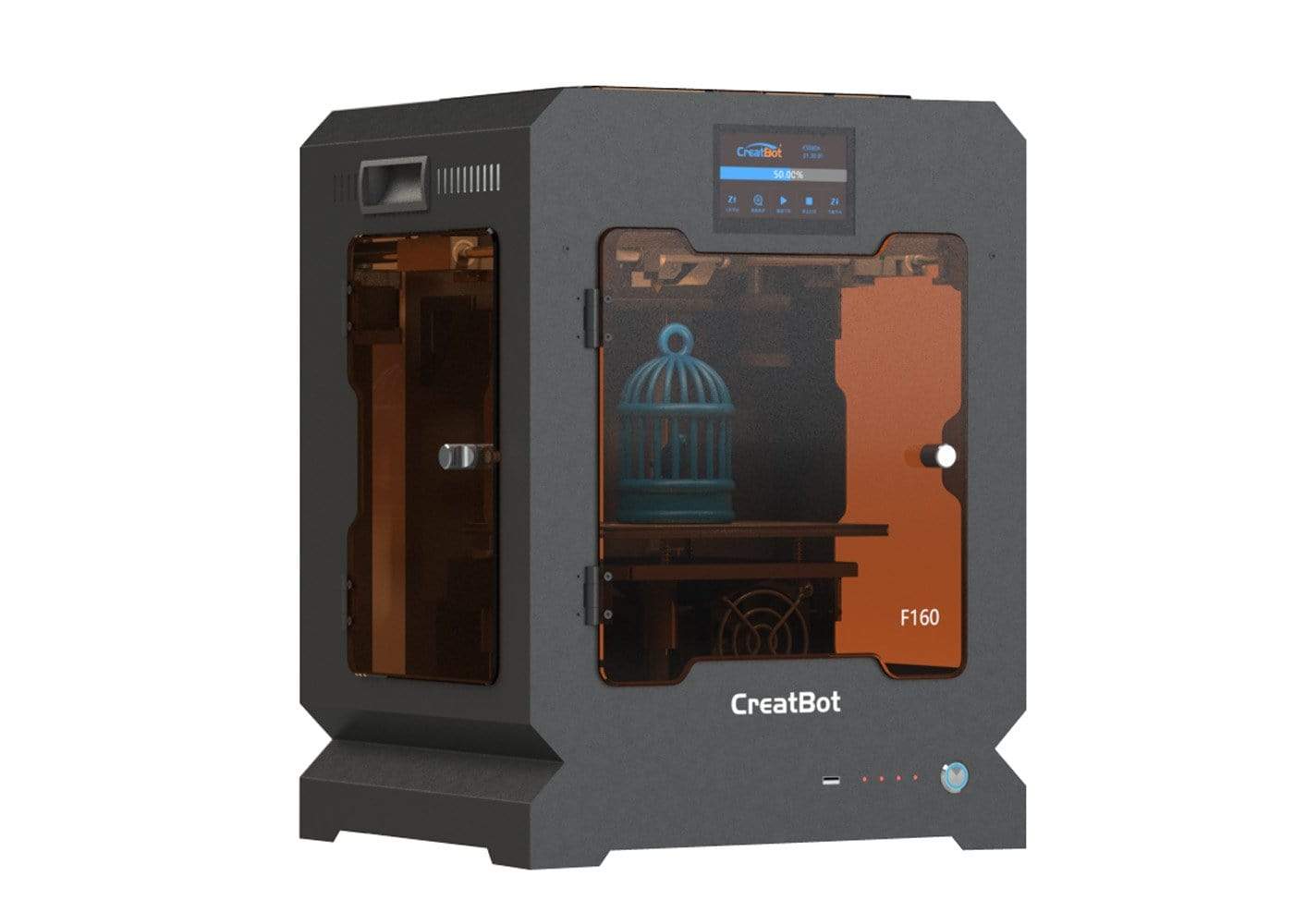

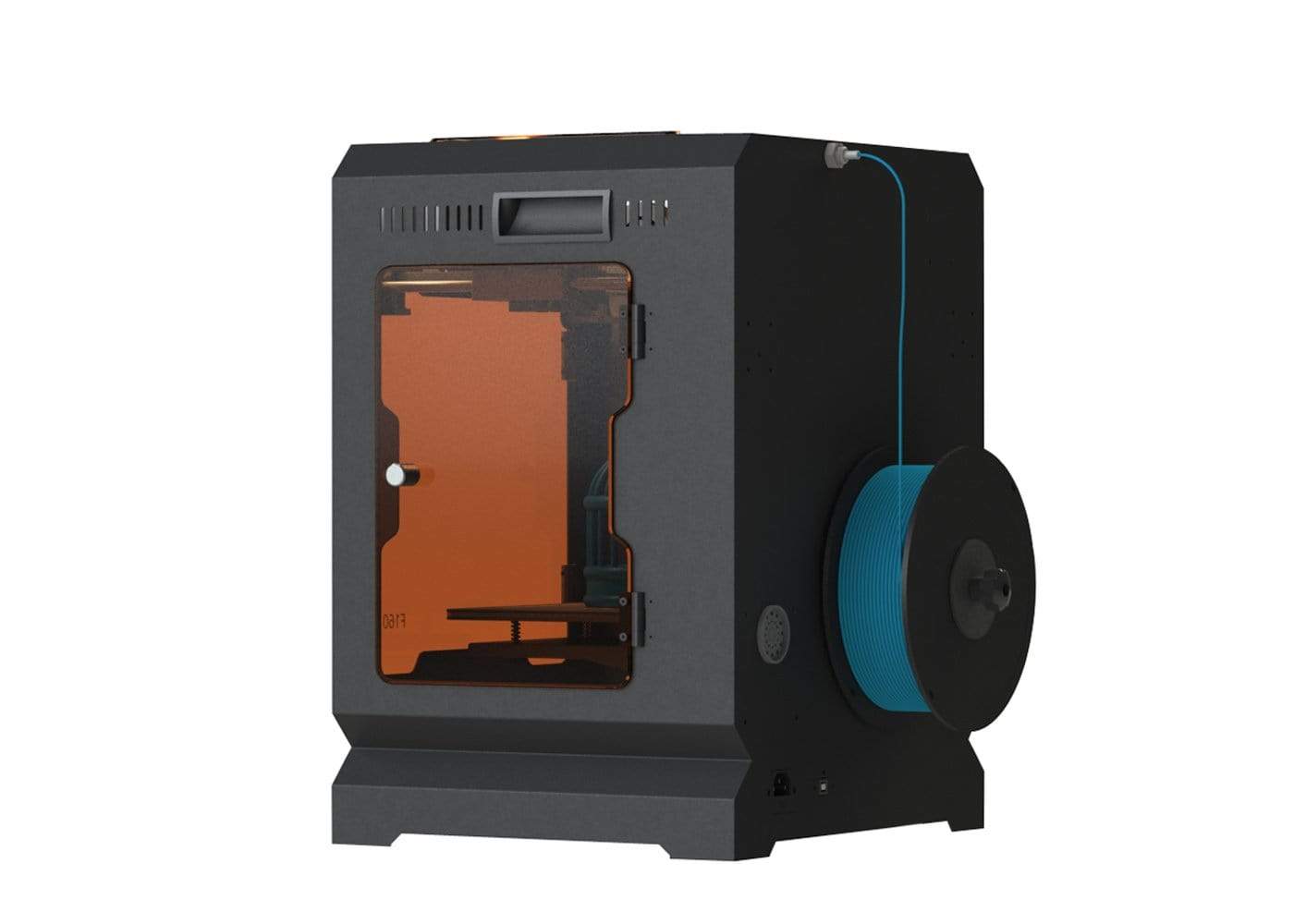

CREATBOT F160 3D PRINTER WITH OPTIONAL PEEK FILAMENT SUPPORT

CreatBot F160 / F160 - PEEK is a desktop 3D printer designed for high reliability and economical 3D printing of high-performance functional materials while being accessible to the small professional or hobbyist. focusing on high-performance materials such as PEEK, PEKK, PEI (Ultem). It is

CREATBOT F160 / F160 - PEEK was launched in 2018 and is constantly researched, developed and updated to supply the highest possible quality while remaining affordable. CreatBot has more than three years of PEEK 3D printer manufacturing experience and has a wealth of 3D printing experience and material identification experience for various high-performance materials such as PEEK, Ultem.

PRODUCT FEATURES

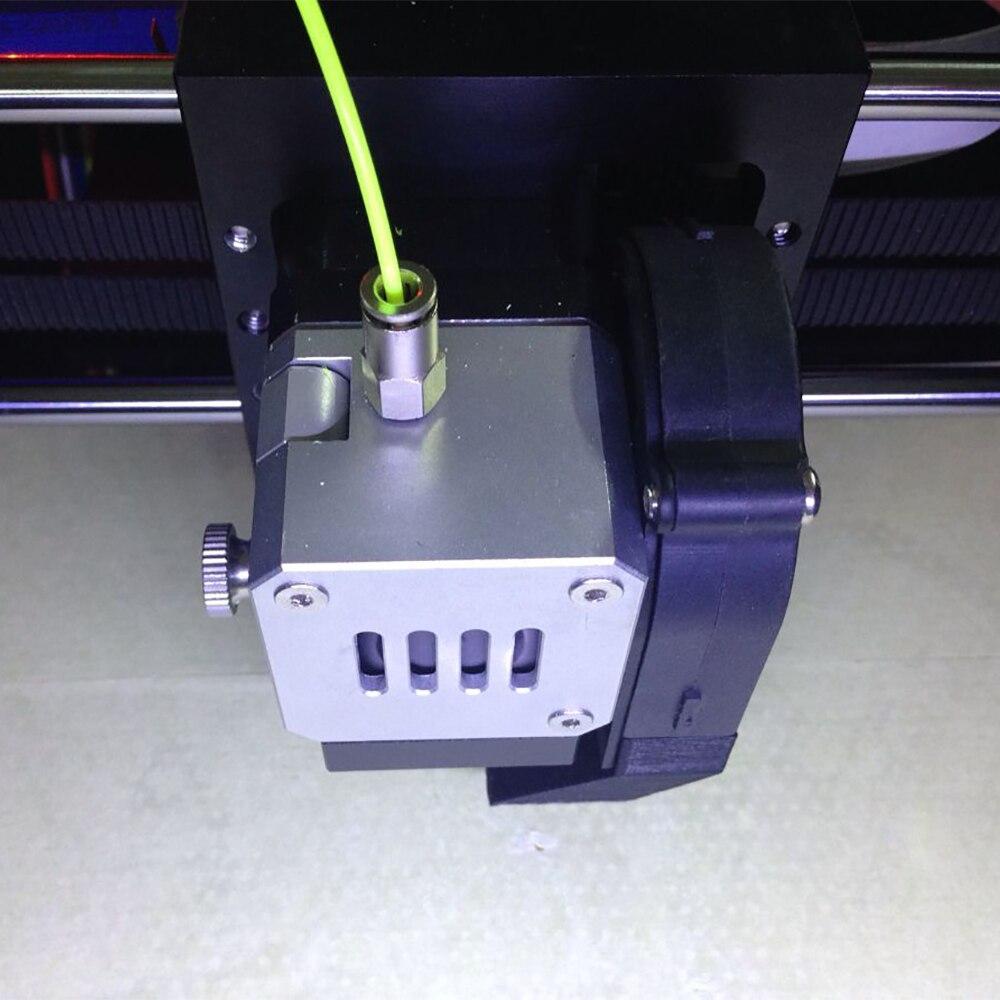

Supports 420°C Hot-End CreatBot are the first to publish a high temperature 420°C high-temperature nozzle to the 3d printer market. These nozzles allow it to print with a variety of filaments. The nozzle height can also be micro-adjusted.

(F160 STANDARD VERSION - 260°C / F160-PEEK VERSION - 420°C)

CreatBot's exclusive research and development of CreatBot F160 / F160-PEEK 3D Printer, Extruder feeding systems, and guide rails allow high-speed printing, very high accuracy that reaches highs of 0.04mm, it allows to extrude filament steadily and without blockage while printing at 120MM/S.

The whole-steel body does not only ensure stability when printing but also greatly extends the usage period. The optimization and construction of the overall structure ensure a sustainable and efficient operation. The first batch of CreatBot 3D Printers has been working for 9 years and more than 30000 hours.

The printer will automatically memorize the current position and save the print data, lower the working platform and withdraw filament if the power suddenly turns off.

It will continue to print from the last stopped point after powering on.The printer will avoid invalid printing by stopping print and warning when filament runs out.

A fully Enclosed Chamber blocks all external interference and reduces noise.

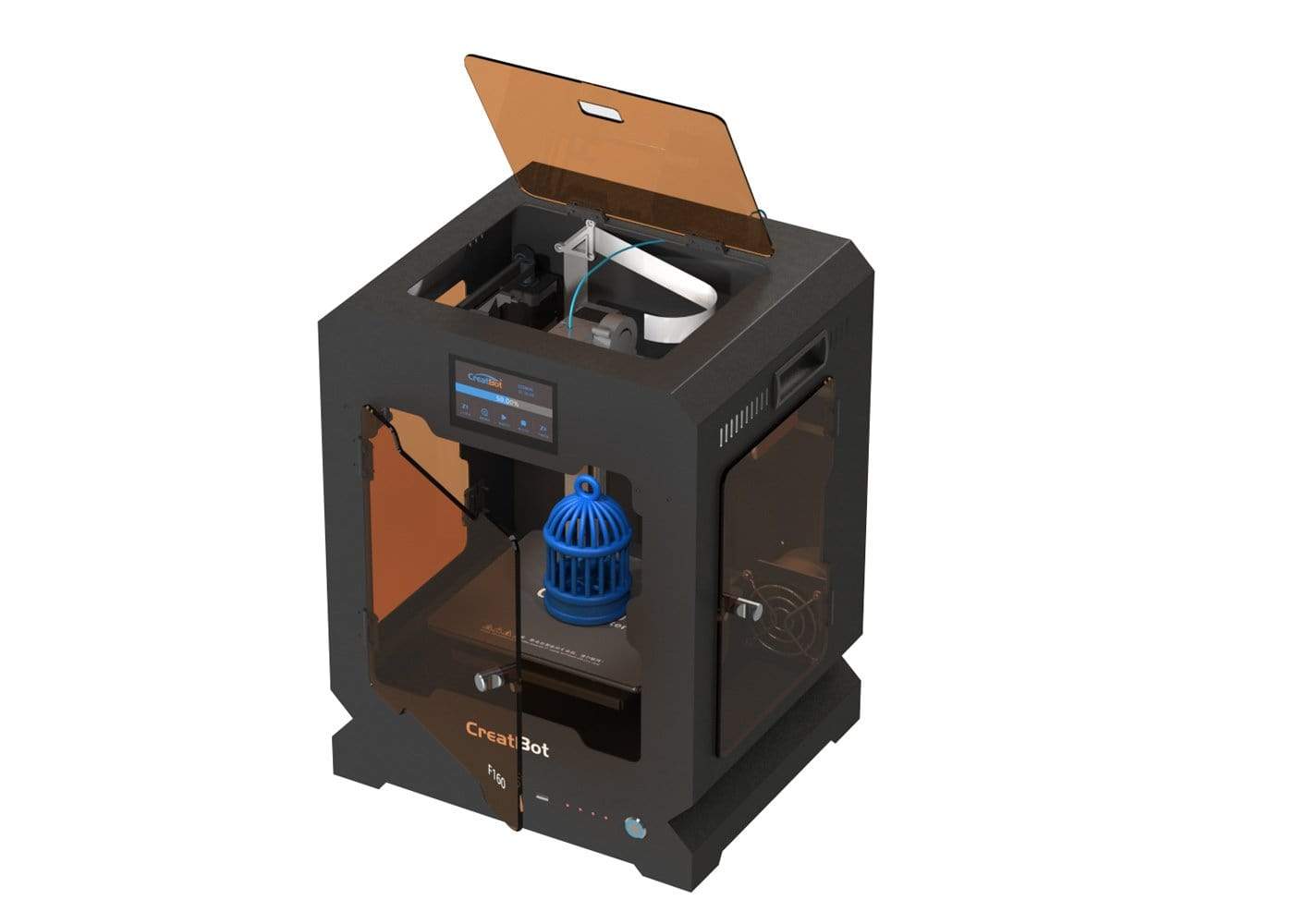

The Hot Chamber can provide constant room temperature as well so the model won’t deform when printing. Acrylic Doors can be opened to remove prints conveniently.

The hotbed is made of heatable aluminum PCB, which can be heated up to 150°C fast. The platform is attached with 3d printing build task stickers. The printed object can be placed on the build task tightly and won’t get deformed.

The printer comes with an all-English-menu touch screen which is easy to operate and very user-friendly. With Many one-key Shortcuts to warm, one key to print as p-4, rounded-lg bg-light border, and many other shortcut keys.

• Notice: The customs fee of your country may apply. The buyer is responsible for all import taxes, duties, fees, and tariffs. Shipping Origin: Canada / USA / China


• Lead Time (Processing/Shipping Handling Time): 8-12 Business Days.


• All pictures shown are for illustration purposes only. The actual product may vary due to product enhancement.




• Product Condition
  Item Condition	New
  Manufacturer Warranty	12 Months
  Printing Specifications
  Print size ( X Y Z )	160*160*200mm (F160)
  Print Speed	30 to 200 mm/sec
  Layer Resolution	0.01mm
  Print Precision (Layer Thickness)	0.04mm
  Filament Diameter	1.75mm
  Nozzle Diameter	0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
  Filament Compatibility	PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc. (for PEEK Version)
  Mechanical Specifications
  Chassis	Power-Coated Steel, Aluminum Casting for Motion Components, POM
  No.of Extruders	One
  Print Plate (Build Platform)	Heatable Aluminium PCB with BuildTak
  Software Specifications
  3D Printing Software	CreatWare Multi-language
  Supported File Formats	STL, OBJ, AMF
  Operating System	Windows
  Temperature Specifications
  Ambient Operating Temperature	15-32 ℃
  Extruder Temperature	Max 260°C (for Standard Version); Max 420°C (for PEEK Version);
  Max. Bed Temperature	150 ℃
  Max. Chamber Temperature	70 ℃ (F160-PEEK only)
  Electrical Specifications
  Power Requirements	100V-110V or 200V-240V / 50-60Hz （Depending on your country's default voltage）
  Max. Power	340W
  Connectivity (Interface)	USB, SD card Supported
  Electronics Specifications
  Electronics (Motherboard)	ATmega 2560
  Shipping specifications
  Machine weight	20 kg
  Shipping box weight	25 kg
  Machine Dimensions	370*320*490mm
  Shipping box dimensions	470*420*600mm
  Shipping Location	China
  Lead Time (Processing/Handling Time)	8-12 business days

  Technical Specs

  Printing
  Print Technology	Fused Deposition Modeling (FDM)
  Build Volume	160*160*200 mm
  Number of Nozzles	Single
  Accuracy	0.04 mm
  Layer Resolution	0.01 mm
  Filament Diameter	1.75 mm
  Filament Compatibility	PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA,PEEK, ULTEM (F160-PEEK) etc.
  Nozzle Diameter	0.4 mm（0.3 0.5 0.6 0.8 1.0 mm）
  Print File Type	STL, OBJ, AMF, Gcode

  Electrical
  Power Requirements	100V-110V or 200V-240V / 50-60Hz (Depending on your country's default voltage)
  Max. Power	340 W
  Screen	4.3" Touch Screen with Multi-language
  Control Chip	ATmega 2560
  Storage Media	U Disk
  Connectivity	USB

  Mechanical
  Construction	Power-Coated Steel, Aluminum Casting for Motion Components, POM etc.
  Build Plate	Heatable Aluminum PCB with BuildTak
  Build Plate Leveling	Manually
  Extruder	Directly Drive
  Stepper Motors	1.8°Step Angle with 1/16 Micro-stepping
  X Y Positioning Precision	12.7 μm
  Z Positioning Precision	1.25 μm

  Speed
  Best Printing speed	70 mm/s
  Max. Printing speed	300 mm/s

  Temperature
  Ambient Operating Temperature	15-32 ℃
  Max. Nozzle Temperature	F160: 260 ℃ F160-PEEK: 420 ℃
  Max. Bed Temperature	150 ℃
  Max. Chamber Temperature	70 ℃ (F160-PEEK)

  Software
  Software Bundle	CreatWare, Simplify 3D, Cura, Slice 3r, etc
  Supported File Types	STL,OBJ,AMF
  Operating Systems	Win7/8/10, MacOS

  Special Function
  Outage Restored	Save data when power is off
  Filament Detection	Pause printing when filament run out
  Automatic Shut-down	Turn off the power automatically when printing is complete

  Size & Weight
  Product Dimensions & Weight	370*320*490 mm 18 kg
  Packing Size & Weight	470*420*600 mm 23 kg
